Specification 78987
Features
- Large scale production: 1000L-40 m3 available
- Max pressure: 200 bar; Max temperature up to 350 ℃
- Available material：SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel.
- When the pressure is large, cladding plates could be considered, including base material for strength and clad material for anti-corrosion.
- Low to high torque magnetic couplings: static seal with no leakage.
- Heating type: Oil electric heating; Thermal oil heating; Steam heating; Hot water; Far infrared heating available.
- Heating Jacket type: Standard; Dimpled; Half-pipe available.
- Internal cooling coil, vent port, liquid / powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light & sight glass, handhole / manhole etc.
- Nozzles, manual / automated valves, fittings, ex-proof control panel & accessories offered based on requirement.
- Lugs or floor stand leg support.
Technical Specifications
| Model | LEJPR 1000~40000 |
| Norminal volume |
1000L-40 m3 |
| Material | CS, SS, other alloy |
| Working pressure | -1~200 bar |
| Working temp. | -196~350℃ |
| Motor power | 5.5kW-125kW |
| Stirring speed | 200~400rpm |
| Sealing method | Magnetic seal |
| Stirrer | Flat blade turbine Self-inducing impeller Marine propeller |
| Jacket | Standard type Dimpled type Half-pipe type |
| Heating type | Oil electric heating Oil heating Steam heating |
Note: Larger size can be designed as your requires!
Product Details

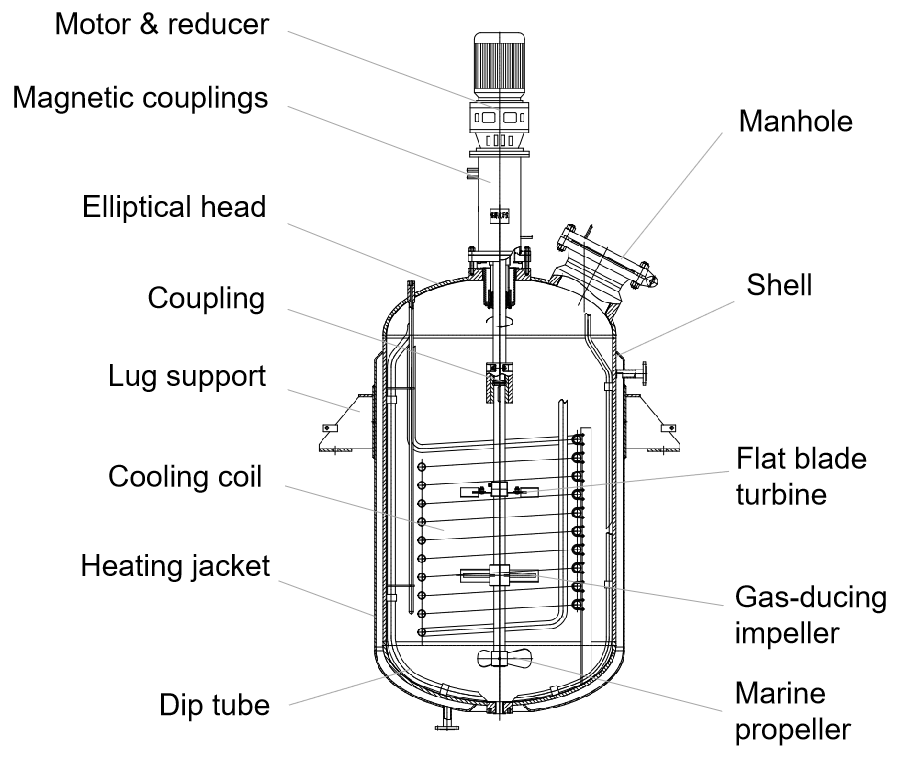

Structure Drawings
