Specification 78987

Features

• Lab to pilot scale production
• Pressure range high vacuum to 300 bar; Max temperature up to 500 ℃
• Optional: External condenser, Reflux tube line, Rectification column, Reciving tank
• Available material：SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel
• Low to high torque magnetic couplings: static seal with no leakage
• Customized according to customers requirement

Standard Specifications

• Capacity: 0.5L~500L
• Main material：SS304, SS316,Titanium, Nickel, Hastelloy B/C,Zirconium
• Pressure: 1 ~ 300 bar
• Temperature: -20~500℃
• Sealing type: Magnetic coupling drive
• Heating type: Oil electric heating
• Standard fittings: Pressure Gage; Thermocouple; Internal Stirring System; Liquid inlet and gas inlet with needle valve；Gas Release Valve; Dip Tube; Safety Rupture Disc; Cooling Coil
• Control system: Control / display of pressure, temperature, stirrer speed
• Customization: Other accessories can be matched for customers requires

Product Details

Structure Drawings

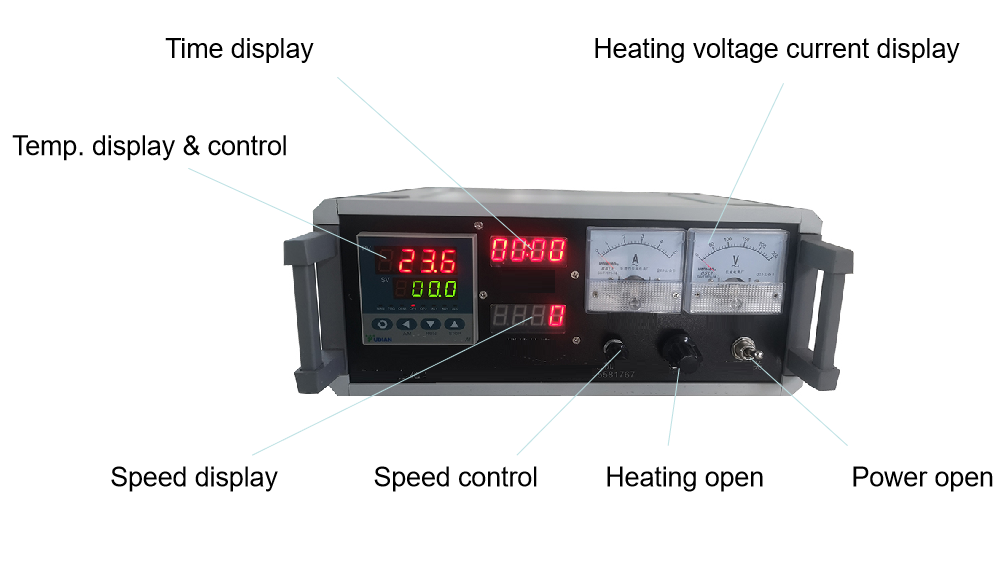

Control System

Internal Components
