Specification 78987

Product features

  • Floor stands or moveable cart type.
  • Capacity volume： 10 liters to 50 liters.
  • Pressure: -1~300 bar; Max temperature up to 350 ℃
  • Low to high torque magnetic couplings: static seal with no leakage.
  • Chain pulley lifting device for reactor head rising and lowering (Electric lifting and hydraulic lifting available）
  • Available material：SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum.
  • Monitor and control: Temperature, pressure, motor speed, operating time, etc.
  • Customized according to customers requirement.

Standard specifications

Model LEMLCLHPCR-I0 LEMLCLHPCR-20 LEMLCLHPCR-30 LEMLCLHPCR-50
Nominal Capacity （L） 10 20 30 50
Design Pressure （bar） 100 100 100 100
Material SS304
Design Temperature (℃) 350
Stirring Speed （r/min） 0-750 0-750 0-500 0-500
Motor Power （kW） 0.6 1.1 1.5 1.5
Heating Power （kW） 4 9 9 15
Heating Method Standard electric heating (Thermal oil, steam, far infrared heating available）
Head type Standard Flat cover type(Ellipsoidal flange, Conical type available)
Impeller type (Optional) Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc
Cooling type (Optional) Spiral cooling cools with cooling water
Discharging type (Optional) Discharging from bottom or above.
Control panel PID temperature display and control, accuracy±1 ℃；stirring speed display；
Operation time display; Heating voltage and current display
Opening port of head (Optional)Pressure gauge, Safety valve port; Temp. measuring port;
Gas and liquid port; Dip tube; Vent port; Solid charging port;
Cooling coil inlet and outler port

Note

  • The above standard parameters are for reference only. Different processe have their own reasonable selection, not the more complete the function, the better.

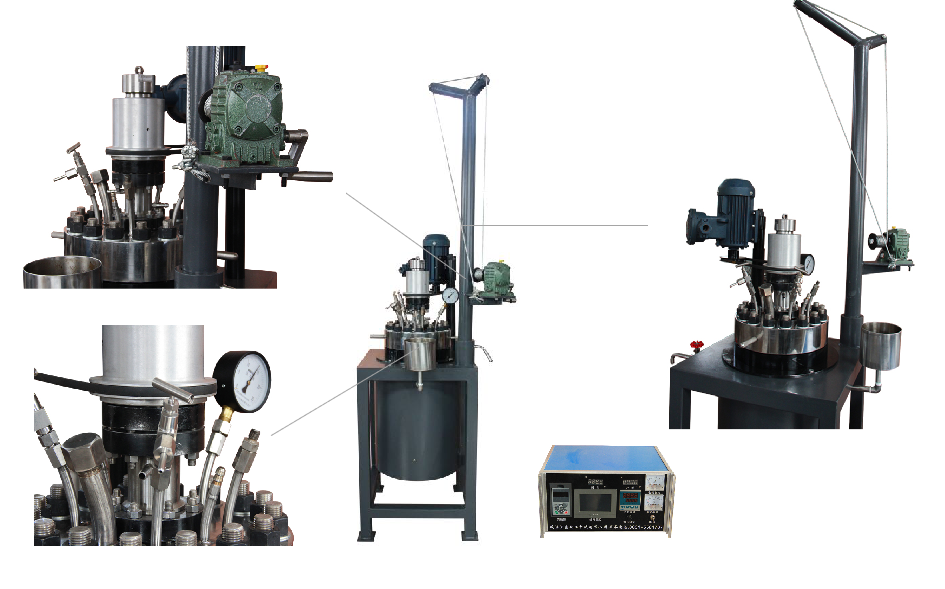

Product details

Structure drawings

Internal components
