Specification 78987

Features:

  • Pressure up to 450bar，electric heating，head lift & vessel rotate
  • Lift for pressure reactors | This series stirred pressure reactor is widely used in laboratory application, which have features as fellows:
  • 100% Sealing. Zero leakage. Low energy cost magnetic stirrer.
  • The top cover and the kettle body are connected by flange bolts.

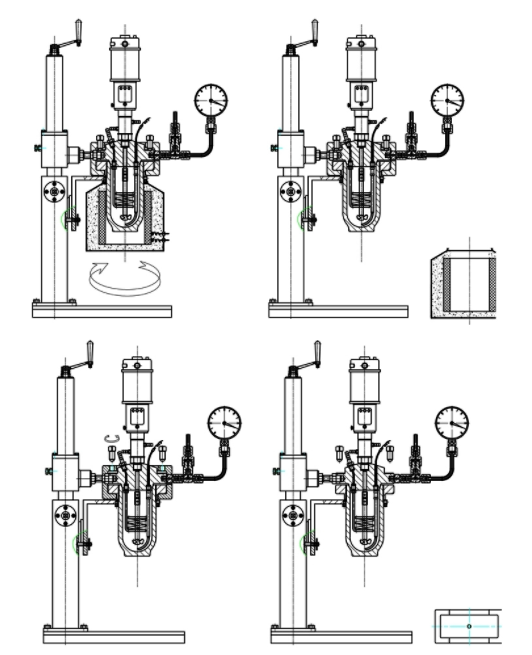

  • Vessel body can be manual rotate for discharge；
  • Top cover lid & magnetic agitator can be manual lifting & lowering

Specifications:

Model No. LEHPRHLVR-0.25 LEHPRHLVR-0.5 LEHPRHLVR-1 LEHPRHLVR-2 LEHPRHLVR-3 LEHPRHLVR-5
Capacity (L) 0.25 0.5 1 2 3 5
Working Pressure (MPa) 10 10 10 10 10 10
Working Temperature (°C) 350 350 350 350 350 350
Stirring Speed (r/min) 0-1500 0-1500 0-1500 0-1500 0-1500 0-1500
Motor power (kW) 0.15 0.15 0.2 0.2 0.2 0.6
Heating Power (kW) 1 1 2 2 3 4
Material Standard SS304 OR SS316
Heating Method General electric heating (water recycling, thermal oil heating available)
Cooling Method Spiral coils (Single coils, serpentine coils available)
Charging Method Charging from above (Bottom valve available)
Stirring type Propeller, paddle type, anchor type or customized
Lifting and tilting type Mannual operation
Control panel Temperature, time and heating voltage display; Temperature adjustment control, accuracy± 1 °C; Stirring speed display and control
Standard fittings Pressure Gage: Thermocouple: Internal Stirring System; Liquid inlet and gas inlet with needle valve; Gas Release Valve Dip Tube; Safety Rupture Disc; Cooling Coil
