LEL3

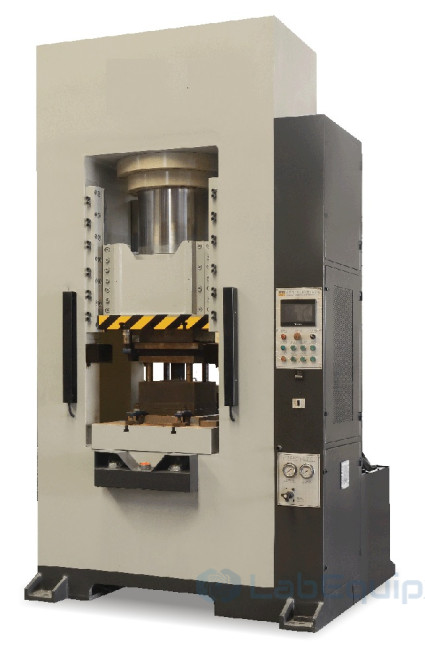

Hydraulic press LEL3 Series
Features:
- Tonnage: 500 ton.
- Effective area of working table: 750x800 mm.
Main specification of Hydraulic press LEL3 Series:
Item Unіt LEL3-300TS LEL3-500TS LEL3-650TS LEL3-800TS LEL3-1000TS LEL3-1500TS Max.Working pressure Mpa 24 25 25 24 24 24 Main cylinder force kN 3000 5000 6500 8000 10000 15000 Max.Stroke of ram mm 400 400 500 500 500 500 Max.Open height mm 700 900 1000 1200 1400 1500 Ejectіon сараcіty kN 30 30 30 30 30 30 Max.Stroke of ejection mm 50 50 50 50 50 50 Lower cyinder nominal force kN 300 400 500 500 600 1000 Max.Stroke of cushion piston mm 200 200 200 200 200 200 Speed of ram (Down no load) mm/s 260 230 220 190 190 190 Speed of ram (Pressіng) mm/s 2/15 2/13 2/10 2/10 2/10 2/10 Speed of ram (Return) mm/s 230 220 210 180 180 180 Effective area of working table RL (edge) mm 650 750 850 1000 1200 1500 Effective area of working table FB (edge) mm 700 800 1000 1060 1400 1500 OveralI dimension (L.R) mm 1390 1780 2760 2960 3200 3700 OveralI dimension (F.В) mm 1580 1870 2100 2300 2500 2800 OveralI dimension (H) mm 3250 3700 4000 4400 4900 5600 Motor power kW 16.4 24.5 31 49.6 60 91 Total weight kg 8500 12000 14000 21000 25000 33000 0il quantity (Approx) L 600 800 800 1000 1300 1500
| Model | LEL3 |
| Brand | LabEquipx |
