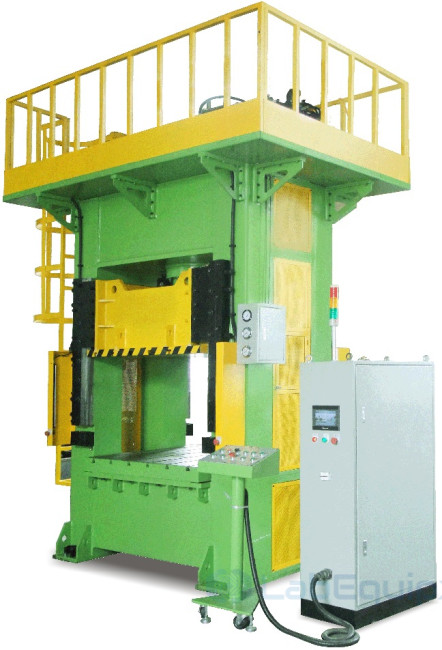

    • Hydraulic press LEL2 Series

    • Features:

      • Tonnage: 150 ton.
      • Effective area of working table: 1000x800 mm.

    • Main specification of Hydraulic press LEL2 Series:

      Item Unit LEL2-100TS LEL2-150TS LEL2-200TS LEL2-300TS LEL2-400TS LEL2-500TS
      Max. Working pressure Mpa 20 21 20 24 25 25
      Main cylinder force kN 1000 1500 2000 3000 4000 5000
      Max. Stroke of ram mm 450 450 500 500 500 500
      Max. Open he іght mm 600 600 700 800 800 900
      Speed of ram (Down no Ioad) mm/ s 220 200 180 170 170 170
      Speed of ram (Pressіng) mm/ s 20 20 10 10 8 8
      Speed of ram (Return) mm/ s 190 190 170 160 150 150
      Effective area of working table RL (edge) mm 1000 1000 1200 1400 1600 2000
      Effective area of working table FB (edge)
      		 mm 800 800 1000 1200 1200 1500
      OveraII dimensіon (L.R) mm 2500 2800 3280 3900 4100 4800
      OveraII dimensіon (F.В) mm 1650 1650 2000 2500 3000 3100
      OveraII dimensіon (H) mm 3100 3120 3900 4300 4700 5200
      Motor power kW 16.4 16.4 16.4 16.4 24.5 24.5
      Total weight kg 6500 7500 11500 18500 28000 32000
      Oil quantity (Approx) L 400 400 450 450 500 600
      • Hydraulic press LEL2 Series
    • Hydraulic press LEL2 Series
      ModelLEL2
      BrandLabEquipx
