LEB4

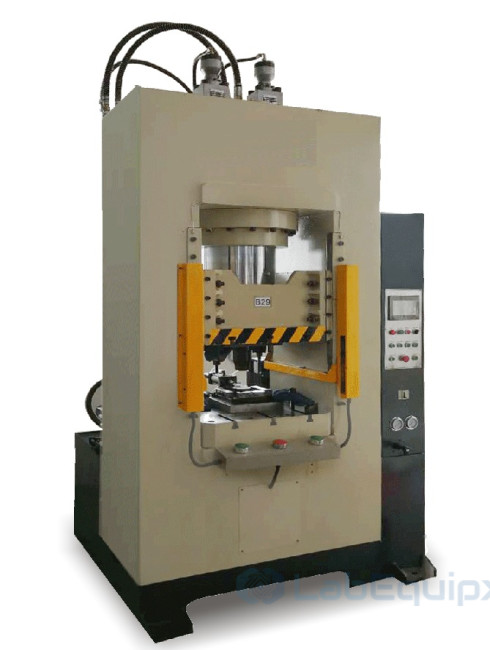

Hydraulic press LEB4 Series
Features:
- Tonnage: 300 ton.
- Effective area of working table: 580x540 mm.
Main specification of Hydraulic press LEB4 Series:
Item Unіt LEB4-300T LEB4-500T LEB4-800T LEB4-1000T Max.Working Pressure Mpa 24 25 24 24 Master Cylinder Nominal Force kN 3000 5000 8000 10 000 Max.Stroke of Ram mm 400 400 500 500 Daylight (Max.Open Height) mm 700 750 900 1 200 Upper Ejection Cylinder Force Ton 100 150 150 150 Stroke of Upper Ejection Cylinder mm 50 50 50 50 Lower Ejection Cylinder Force Ton 100 150 150 150 Stroke of lower Ejection Cylinder mm 100 100 100 100 Upper Cushion Cylinder Force Ton 100 100 200 200 Stroke of Upper Cushion Cylinder mm 50 50 50 50 Lower Cushion Cylinder Force Ton 100 100 200 200 Stroke of lower Cushion Cylinder mm 50 50 50 50 Speed of Ram (Down No Load) mm/s 260 250 200 200 Speed of Ram (Pressing) mm/s 2—15 2—15 2—10 2—10 Speed of Ram (Return) mm/s 230 230 190 190 Effective Area of Working Table RL (lnside Column) mm 550 750 850 1 050 Effective Area of Working Table FB (Edge) mm 650 800 950 1100 Servo Motor Power kW 16.4 24.5 31 49.6
| Model | LEB4 |
| Brand | LabEquipx |
