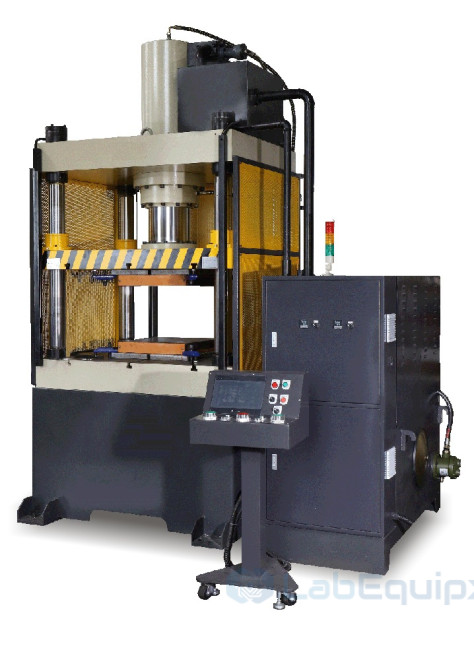

    • Hydraulic press LEA6 Series

    • Features:

      • Tonnage: 150 ton.
      • Effective area of working table: 750x800 mm.

    • Main specification of Hydraulic press LEA6 Series:

      Item Unit LEA6-80T LEA6-100T LEA6-150T LEA6-200T LEA6-300T
      NomіnаI force kN 800 1000 1500 2000 3000
      Max.Working pressure Mpa 20 21 21 20 24
      Main cylinder force kN 800 1000 1500 2000 3000
      Max.Stroke of ram mm 350 350 350 350 350
      Max. Open he іght mm 450 450 550 600 650
      Speed of ram (Down no Ioad) mm/s 180 180 180 180 170
      Speed of ram (Pressing) mm/s 15 12 10 10 8
      Speed of ram (Return) mm/s 170 170 170 170 165
      Effective area of working table RL (column inside) mm 550 550 550 550 550
      Effective area of working table FB (edge) mm 600 600 600 600 650
      Overall dimension (L.R) mm 1550 1550 1760 1830 1420
      Overall dimension (F.B) mm 1260 1260 1260 1360 1550
      Overall dimension (H) mm 2580 2580 2650 2750 2920
      Motor power kW 7.5 7.5 7.5 11 15
      Total weight (Approx) kg 2600 2600 3200 3500 6200
      0il quantity (Approx) L 300 360 360 400 450
      • Hydraulic press LEA6 Series
    • Hydraulic press LEA6 Series
      ModelLEA6
      BrandLabEquipx
