LEC1

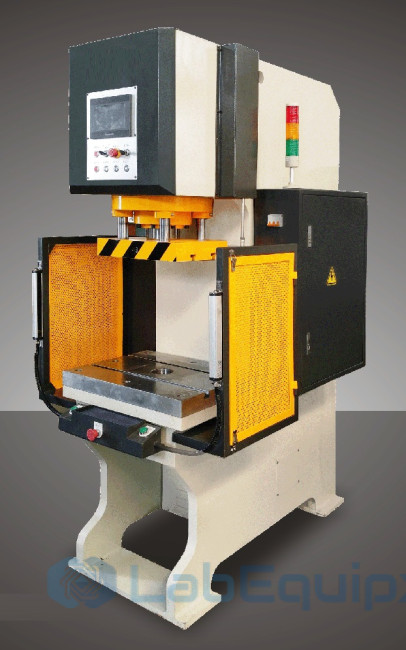

Hydraulic press LEC1 Series
Applicable Scope:
- Punching forming, cutting, pressing, riveting, half and full cutting of thin sheet, press point forming of locknut, etc.
- Shaping and punching for metal and nonmetal parts.
Technical Features:
- With servo system, 60% energy will be saved, precision can reach to 0.02mm and speed is adjustable. It's accessible to have local language in the touch screen. 20 sets of data can be saved.
- Using built-in high speed cylinder, has fast falling speed and high production efficie ncy.
- C frame structure design enables wholly accessible operating space, long stroke distance and enough opening height.
- Pressure, stroke and pressurizing time can be adjusted according to processing requirement.
- Optional configuration: protective shield, anti-drop device, LED lighting and infrared grating, etc.
- Tonnage: 30 ton.
- Effective area of working table: 600x460 mm.
Main specification of Hydraulic press LEC1 Series:
Item Unit LEC1-3TS LEC1-5TS LEC1-10TS LEC1-15TS LEC1-20TS LEC1-25TS LEC1-30TS Max.Working pressure Mpa 12 14 13 19 21 20 19 Main cylinder force kN 30 50 100 150 200 250 300 Max. Stroke of ram mm 150 150 200 200 250 250 300 Max. Open heighl mm 320 320 380 400 400 450 450 Speed of ram (Down no load) mm/s 220 210 400 450 450 500 500 Speed of ram (Pressing) mm/s 40 35 40 40 35 30 20 Speed of ram (Retur) mm/s 200 200 280 280 270 250 230 Effective area of working table RL (edge) mm - - 350 350 350 400 400 Effective area of working table FB (edge) mm - - 250 250 250 300 300 Adaptor mm ф 25*40 ф 25*40 ф 32*50 ф 38*60 ф 38*60 ф 50*70 ф 50*70 Effective area of working table RL (edge) mm 450 450 500 550 550 600 600 Effective area of working table FB (edge) mm 320 320 320 380 380 460 460 Overall dіmensіon (L.R) mm 680 680 900 940 940 960 960 Overall dіmensіon (F.В) mm 920 920 600 1040 1040 1080 1080 Overall dіmensіon (H) mm 1980 1980 2000 2020 2020 2415 2415 Motor power kW 4 4 4 4 4 6 6 Total weight (Approx) кg 600 720 800 850 890 2210 2350 Oil quantіty (Approx) L 70 70 80 80 80 120 120 Item Unit LEC1-40TS LEC1-50TS LEC1-60TS LEC1-80TS LEC1-100TS LEC1-150TS Max.Working pressure Mpa 20 20 20 21 20 21 Main cylinder force kN 400 500 600 800 1000 1500 Max. Stroke of ram mm 350 350 450 450 450 450 Max. Open height mm 550 550 600 600 700 700 Speed of ram (Down no load) mm/s 210 205 190 190 190 180 Speed of ram (Pressing) mm/s 25 22 20 20 20 15 Speed of ram (Return) mm/s 200 200 180 185 180 180 Effective area of working table RL (edge) mm 450 450 500 500 600 600 Effective area of working table FB (edge) mm 250 250 300 300 380 380 Adaptor mm ф 50*70 ф 50*70 ф 60*75 ф 60*75 ф 60*75 ф 60*75 Effective area of working table RL (edge) mm 700 700 800 800 900 900 Effective area of working table FB (edge) mm 500 500 550 550 600 600 Overall dimension (L.R) mm 820 820 950 950 1150 1150 Overall dimension (F.В) mm 1350 1540 1680 1750 1840 1950 Overall dimension (H) mm 2150 2200 2350 2540 2580 2670 Motor power kW 6 11.6 11.6 11.6 16.4 16.4 Total weight (Approx) kg 2480 2610 2800 4850 6500 11000 0il quantity (Approx) L 130 130 150 200 270 270
| Model | LEC1 |
| Brand | LabEquipx |
