LEA3

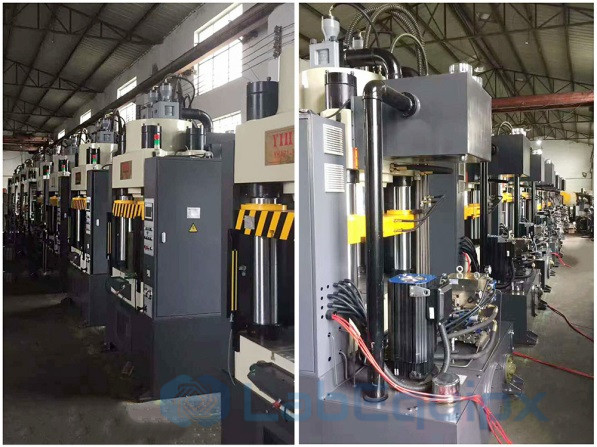

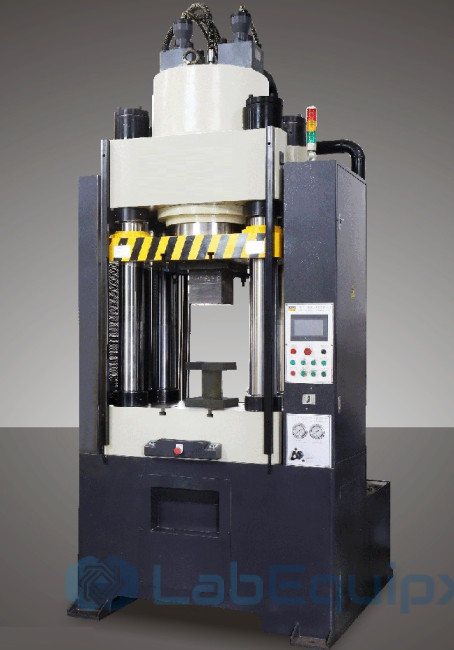

Hydraulic press LEA3 Series
Applicable Scope
- Cold extrusion molding stamping forging for auto parts, LED heat sink and hardware tools, etc.
- Shallow stretching and molding for metal and nonmetal parts.
Technical Features:
- Tonnage: 500 ton.
- Effective area of working table: 650x700 mm.
- With servo system, 60% energy will be saved, precision can reach to 0.02mm and speed is adjustable. It's accessible to have local language in the touch screen. 20 sets of data can be saved.
- Using Taiwan advanced hydraulic system, more steady, safer and more reliable.
- Pressure, stroke and pressure keeping can be adjusted according to processing requirement.
- Four columns are made of high-strength alloy steel with hard chrome plated surface and good abrasion resistance.
- The moving bolster and worktable are equipped with optional ejecting cylinder, which meets different ejecting requirements of different products.
Main specification of Hydraulic press LEA3 Series:
Item Unit LEA3-100TS LEA3-150TS LEA3-200TS LEA3-300TS LEA3-500TS Max.Working pressure Mpa 21 21 20 24 25 Main cylinder force кN 1000 1500 2000 3000 5000 Max. Stroke of ram mm 350 350 350 350 350 Max. Open height mm 550 550 600 700 900 Lower cyinder nominal force kN 150 200 300 300 400 Max. stroke of cushion piston mm 150 150 150 200 200 Speed of ram (Down no load) mm/s 260 250 270 260 250 Speed of ram (Pressing) mm/s 10/25 10/20 10/15 8/15 8/15 Speed of ram (Return) mm/s 250 240 240 230 230 Effective area of working table RL(column inside) mm 550 550 550 550 650 Effective area of working table FB (edge) mm 600 600 600 650 700 Overall dimension (L.R) mm 1550 1760 1830 2150 2250 Overall dimension (F.В) mm 1260 1260 1360 1550 1850 Overall dimension (H) mm 2580 2650 2750 3020 3550 Motor power kW 7.5 7.5 11.6 16.4 24.5 Total weight (Approx) kg 4500 3400 3800 4500 7800 Oil quantity (Approx) L 350 350 400 450 500 Item Unit LEA3-650TS LEA3-800TS LEA3-1000TS LEA3-1500TS LEA3-2000TS LEA3-3000TS Max.Working pressure Mpa 25 24 24 24 25 24/40 Main cylinder force кN 6500 8000 10000 15000 20000 30000 Max. Stroke of ram mm 500 500 500 500 500 500 Max. Open height mm 1000 1000 1200 1400 1500 1500 Lower cyinder nominal force kN 500 500 500 600 1000 1000 Max. stroke of cushion piston mm 200 200 200 200 200 200 Speed of ram (Down no load) mm/s 210 200 190 190 190 190 Speed of ram (Pressing) mm/s 8/16 8/16 8/16 7/9 6/8 4/6 Speed of ram (Return) mm/s 200 190 180 180 180 180 Effective area of working table RL(column inside) mm 750 850 1000 1200 1500 1500 Effective area of working table FB (edge) mm 800 950 1060 1400 1500 1500 Overall dimension (L.R) mm 2370 2550 2950 3500 3900 4200 Overall dimension (F.В) mm 1800 1850 2200 2400 2600 2900 Overall dimension (H) mm 3700 3950 4100 5250 5650 5850 Motor power кW 31 31 49.6 31*2 49.6*2 49.6*3 Total weight (Approx) Ton 11500 13500 21000 25000 33000 42000 Oil quantity (Approx) L 800 800 1000 1300 1500 1800
| Model | LEA3 |
| Brand | LabEquipx |
