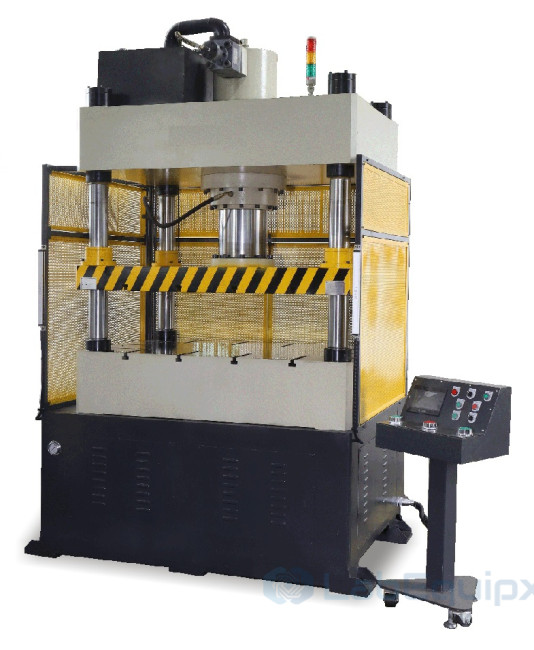

    • Hydraulic press LEA2 Series

    • Features:

      • Tonnage: 200 ton.
      • Effective area of workingtable: 1200x800 mm.

    • Main specification of Hydraulic press LEA2 Series:

      Item Unit LEA2-200TS LEA2-300TS LEA2-400TS LEA2-500TS LEA2-600TS LEA2-800TS LEA2-1000TS
      Max.Working pressure Mpa 20 24 25 25 25 25 25
      Main cylinder force kN 2000 3000 4000 5000 6000 8000 10000
      Max. Stroke of ram mm 350 350 350 350 350 400 350
      Max. Open he іght mm 350 350 350 350 350 400 350
      Speed of ram (Down no load) mm/s 180 170 170 170 160 160 160
      Speed of ram (Pressіng) mm/s 10 10 8 8 8 8 8
      Speed of ram (Return) mm/s 170 160 150 150 150 150 150
      Effective area of working table RL (соlumn іnsіde) mm 1100 1200 1400 1400 1600 1600 1600
      Effective area of working table FB (edge) mm 800 800 1000 1000 1200 1200 1200
      Overall dimension (L.R) mm 1720 1850 2690 2690 2850 3070 3100
      Overall dimension (F.B) mm 1250 1250 1650 1750 1850 1850 2850
      Overall dimension (H) mm 2850 2870 2750 2950 3100 3350 3380
      Motor power kW 11.6 16.4 24.5 24.5 31 31 49.6
      Total weight kg 5500 6400 13000 16500 17500 25000 30000
      0il quant ity (Approx) L 400 450 500 500 800 800 1000
      • Hydraulic press LEA2 Series
    • Hydraulic press LEA2 Series
      ModelLEA2
      BrandLabEquipx
