TD4A

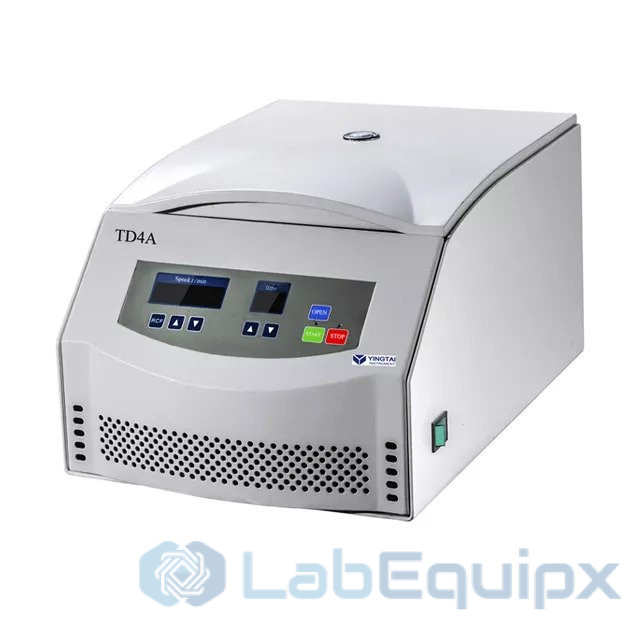

TD4A Low Speed Centrifuge
Features
- TD4A centrifuge is of microprocessor control, less noisily, it is widely used to qualitative analysis of blood serum, plasma and urea in the fields of hospital, blood center, laboratory and biochemistry.
- Brushless motor, free maintenance, no powder pollution, quick in speed up and down.
- The flexible axle driven system which drive the rotor directly, smooth in operation and small vibration.
- There are many rotors for your choice, suitable for different specifications meet customers’ different requirements of separation.
- Micro computer control system, LED display the RCF，time and speed.
- Electric lid lock, compact design, super speed and imbalance protection.
TD4A Technical Parameter：
Max. Speed 4000rpm Max. RCF 2470×g Max. Capacity 6×50ml Time Range 0~99min RPM/RCF Convert Yes Noise (dB) ≤ 45 Temperature Normal Acc/Dec 10 Kinds Speed Accuracy ±10r/min Voltage(V/Hz) AC 220V/110V 50HZ/60HZ Size (W x D x Hmm) 485×320×255mm Net Weight/Gross Weight(Kg) 18KG/21KG Certificates CE,ISO & Calibration report are available Matched Rotors for TD4A
Order No Rotors Max speed r/min Volume(ml) Max RCF(g) 21413 TD4A 4000 24×10ml 2200 NO21415 Swing rotor 4000 6×10ml Vacuum tube 2390 NO21416 6×7ml Vacuum tube adapter NO21417 6×5ml Vacuum tube adapter NO32666 8×10ml Vacuum tube 2470 NO32665 8×7mlVacuum tube adapter NO32664 8×5mlVacuum tube adapter NO32667 Angle Rotor 4000 12×10ml Vacuum tube 2150 NO32668 12×7ml Vacuum tube adapter NO32669 12×5ml Vacuum tube adapter No31605 Angle rotor 4000 30x7/5ml 2250 No31604 Angle rotor 4000 18×10ml 2250 No31607 Angle rotor 4000 24x10ml 2200 No31602 Angle rotor 4000 12×15ml/7ml/5ml 2150 No31603 Angle rotor 4000 12×20ml 2220 No31606 Angle rotor 4000 6x50ml 2100
| Model | TD4A |
| Brand | YINGTAI |
