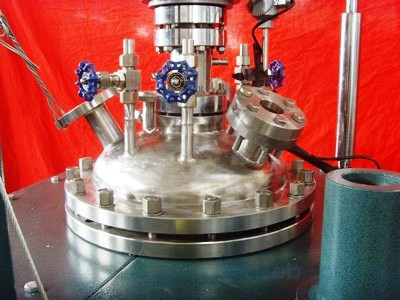

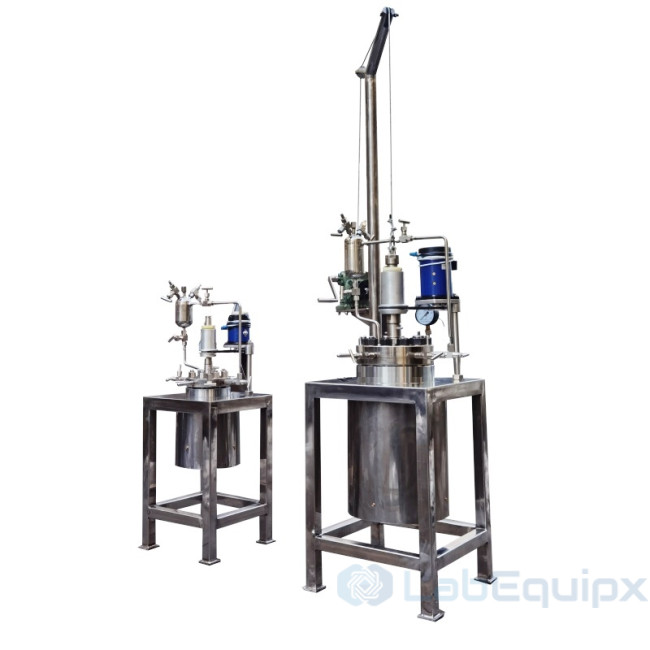

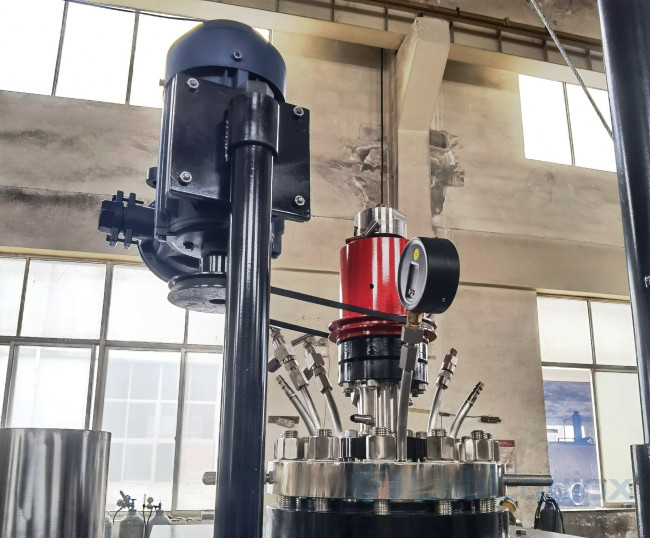

Stirred Hydrogenation Reactor with Constant Pressure Feeding LESHRCPF

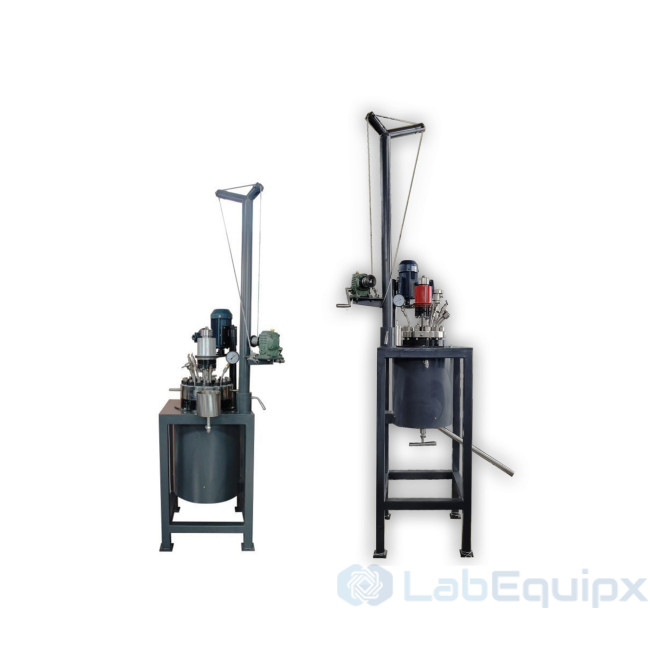

Stirred Hydrogenation Reactor with Constant Pressure Feeding LESHRCPF - this serious is equipped with lifting device, which makes it easier to clean the inner. Lifting device is easy to operate and use, turn the handwheel to lift square iron and kettle cover, rotate the kettle body to the right position by turning handle to discharge the material.
It is mainly used for lab or pilot experiment. High sealing performance, Easy operation and clean up, Saving labor cost and working time.
Application:
- Chemical development
- High pressure none leakage application
- Corrosion test, and catalyst test
- Scale-up
- Pilot-Plant
- Small-scale production
- Hydrogenation
- Catalytic Reaction
- Polymerization
Performance feature:
- High sealing performance
- Easy operation and clean up
- Saving labor cost and working time.
Structural features:
- Magnetic drive rotation；
- Cover can be lifted up and down easily by manual lifting device；
- Upper or down discharge；
- The form of stirring paddle can be selected and customized according to user's requirements.
- 304L, 316L stainless steel, also be choose Titanium, Nickel, Hastelloy, Zircon, PTFE liner.

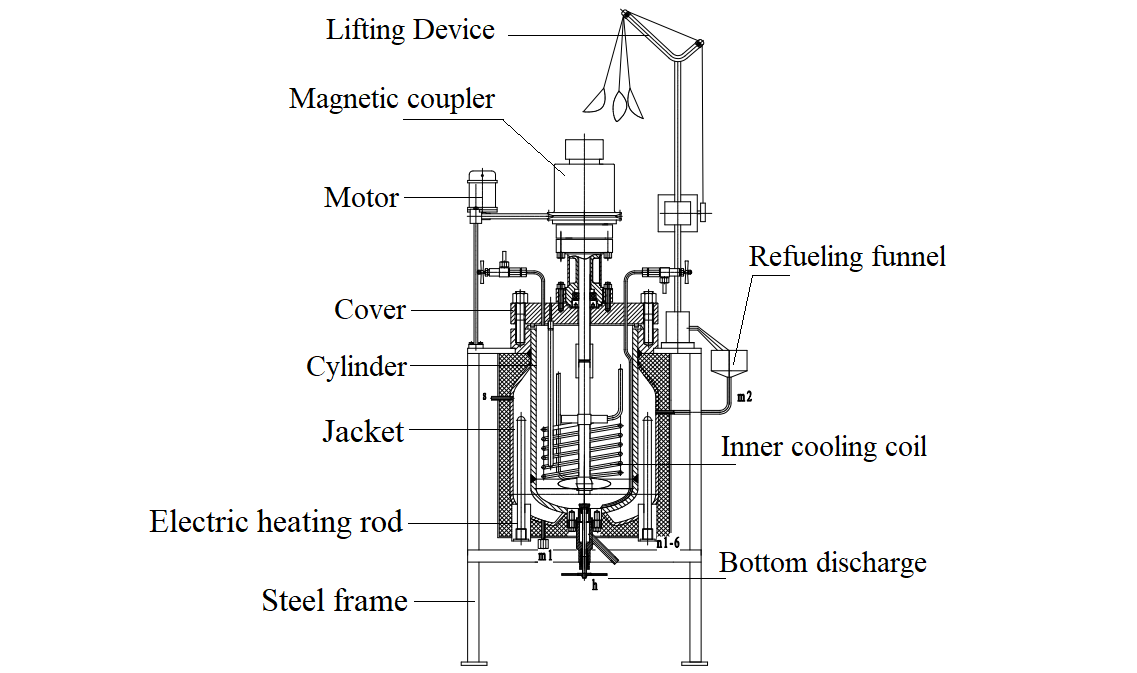

Structural drawing:
Specifications and pechnical Parameters:
Model No. LESHRCPF-I0 LESHRCPF-20 LESHRCPF-30 LESHRCPF-50 Nominal Capacity （L） 10 20 30 50 Max Working Pressure （MPa） 30 30 30 30 Working Temperature ℃ 300 300 300 300 Stirring Speed （r/min） 0-750 0-750 0-450 0-450 Motor Power （KW） 0.6 1.1 1.5 1.5 Heating Power （KW） 4 9 9-15 9-15 Heating Method Electric heating, water recycling, thermal oil, far infrared heating. Control panel Temperature display and control, accuracy±1 ℃；stirring speed display； stepless speed regulation，can realize the goal of automatic constant temperature.
| Model | LESHRCPF |
| Brand | LabEquipx |
