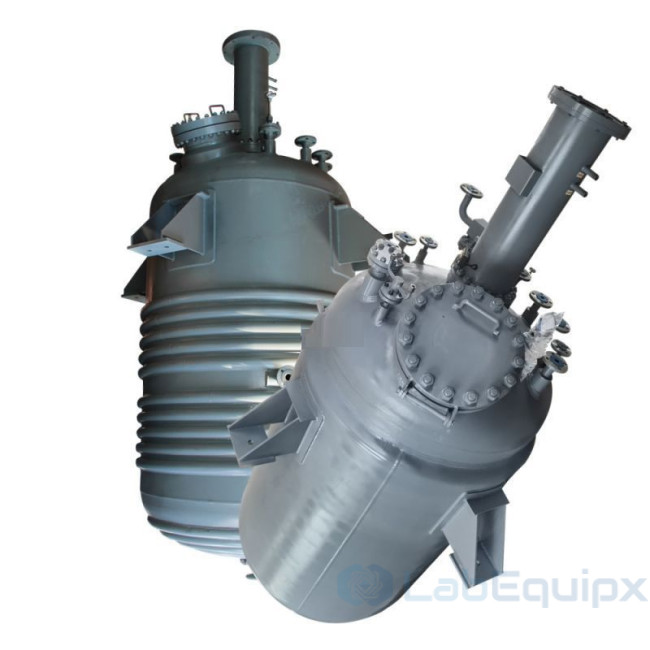

Industrial Hydrogenation Reactor LEIHR
Industrial Hydrogenation Reactor LEIHR - the hydrogenation system usually involves a three-phase slurry, the solid catalyst in slurry phase and the hydrogen bubbles as the gas phase.
As there are a number of phase boundaries the mass transfer, and especially the hydrogen dispersion, is a very factor. The mixing system that is employed in the reactor influences the mass transfer coefficient of the gas-liquid transfer greatly.
Features:
- Deliver many years of economical service life
- Provide outstanding Corrosion Resistance
- Produce high heat transfer efficiency
- Accommodate high steam pressure
- Fully welded metal construction
Features

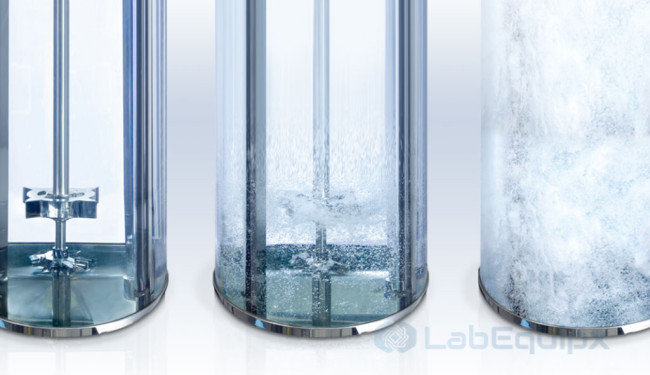

Gas Induction Tech.
- Higher gas Hold-up & mass transfer
- Fine dispersion of the hydrogen
- Large Gas-Liquid interfacial area
- Recirculation of the unused gas
- Uniform suspension of solid components (e.g., Catalyst)
Magnetic Couplings Driver
- 100% Sealing. Zero leakage. Low energy cost.
- Various model for volume: 100ml~50m3
- Long using life of bearings, less maintenance times
- Full vaccum/200 bar available;
- Cooling jacket set for high temperature application.
Internal Fittings Optional
- Internal heating/Cooling coils: Tube type or spiral coils;
- Dip tube & temperature measure tube;
- Shaft, Couplings & combined stirring paddle impeller;
- Gas distributor. spargers & baffles
Optional for Pressure Vessel
- Full Jacket/ Half-pipe jackets/ Dimpled jackets；
- Head type:Semi-elliptical/ Dished/ Hemispherical/ Flat；
- Explosive Clad Steel for anti-corrosion high pressure conditions.
Specifications
Model LEIHR 100ml~20000L Total volume 100ml-20000liters Design pressure maximum up to 350bar Design temperature Up to 350℃ Vessel material Standard SS304/SS316/Solid or clad steel SS2205, SS321, C-276, nickel, titanium, zirconium Motor Explosion-proof DIICT4/ 7.5-90kW Stirring speed 0~350rpm Heating method Steam/ Oil/ Electric Cooling method Internal spiral coils or cooling tube condenser Jacket type Conventional/ Limpet coil/ half pipe Agitator sealing Zero leakage magnetic drive couplings Stirring type Hollow shaft with gas induction impeller Gasket Spiral wound metallic gasket Internal fittings Term. sensor, Dip tube, Baffles, Cooling coils, Gas distributor Note: The data and specification can be change and customize as the requirements
| Model | LEIHR |
| Brand | LabEquipx |
